Testing

Overall

Tests must validate the following:

Migrating to LFS does not present data loss
PRs must not loose data, can be closed, but must be recoverable
Must work for forks and PRs that use Rebase strategy
Must work for forks and PRs that use Merge strategy
Must work for internal branch PRs
Must potentially work without having to enforce LFS downloads/uploads of all files

Setup

Make sure repos pdellaert/fbw-aircraft-git-lfs and fbw-devops/fbw-aircraft-git-lfs do not exist
Create pdellaert/fbw-aircraft-git-lfs repo, empty
Empty the LFS Bucket with TEST-cleanup-ALL-fbw-git-lfs-bucket.sh

Steps

Mirror large repo using git-mirror-large-repo.sh, this mirrors flybywiresim/aircraft to pdellaert/fbw-aircraft-git-lfs
```
git-mirror-large-repo.sh
```

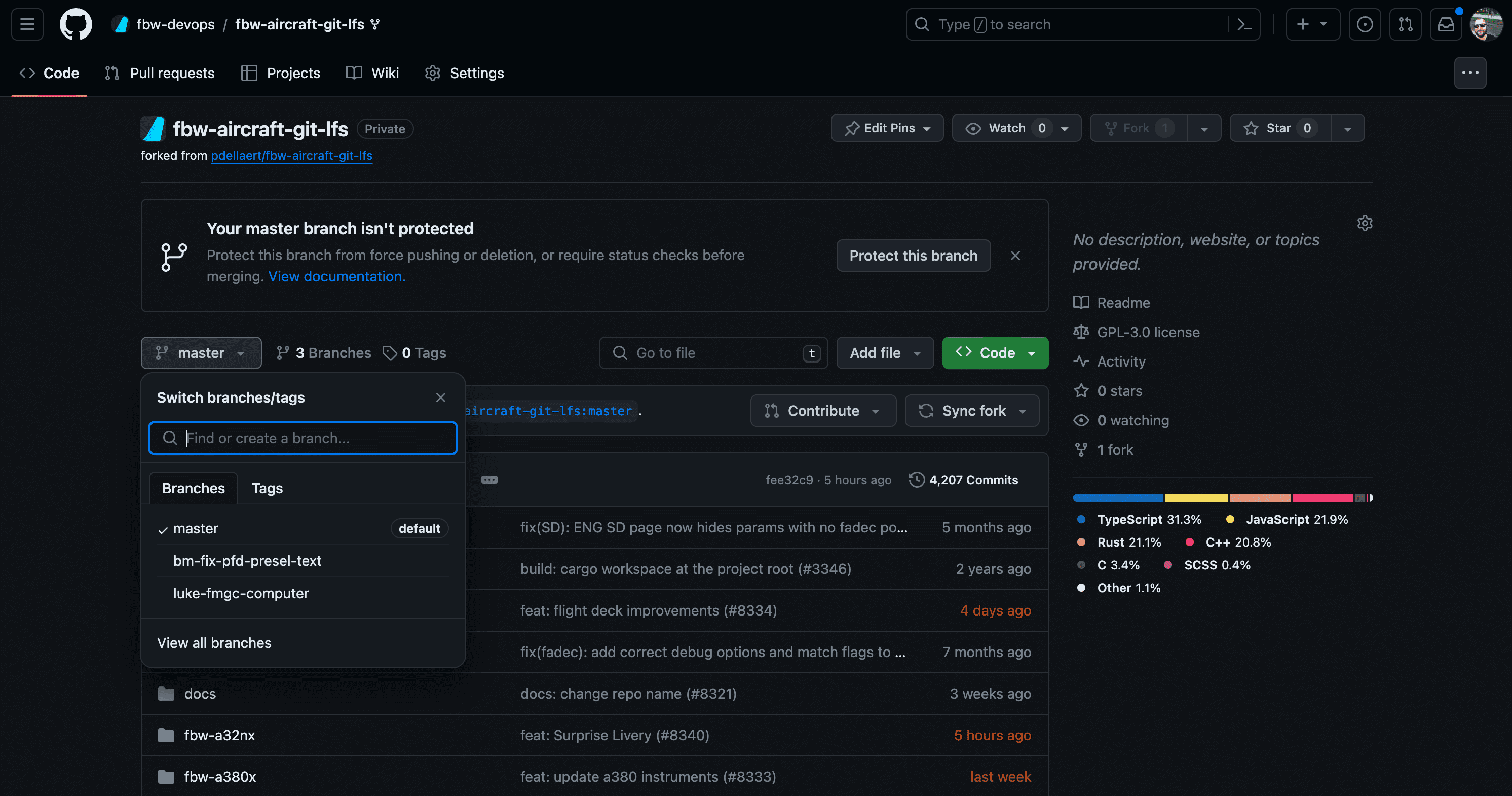

Fork the pdellaert/fbw-aircraft-git-lfs repo to the fbw-devops org

Clone the fork with

git clone [email protected]:fbw-devops/fbw-aircraft-git-lfs.git

Add a remote of a PR to the cloned repo (https://github.com/lukecologne/a32nx/tree/fmgc-computer) and push the PR branch to the origin (fork) repo

git remote add luke [email protected]:lukecologne/a32nx.git
git fetch luke
git checkout luke/fmgc-computer
git switch -c luke-fmgc-computer
git push origin luke-fmgc-computer

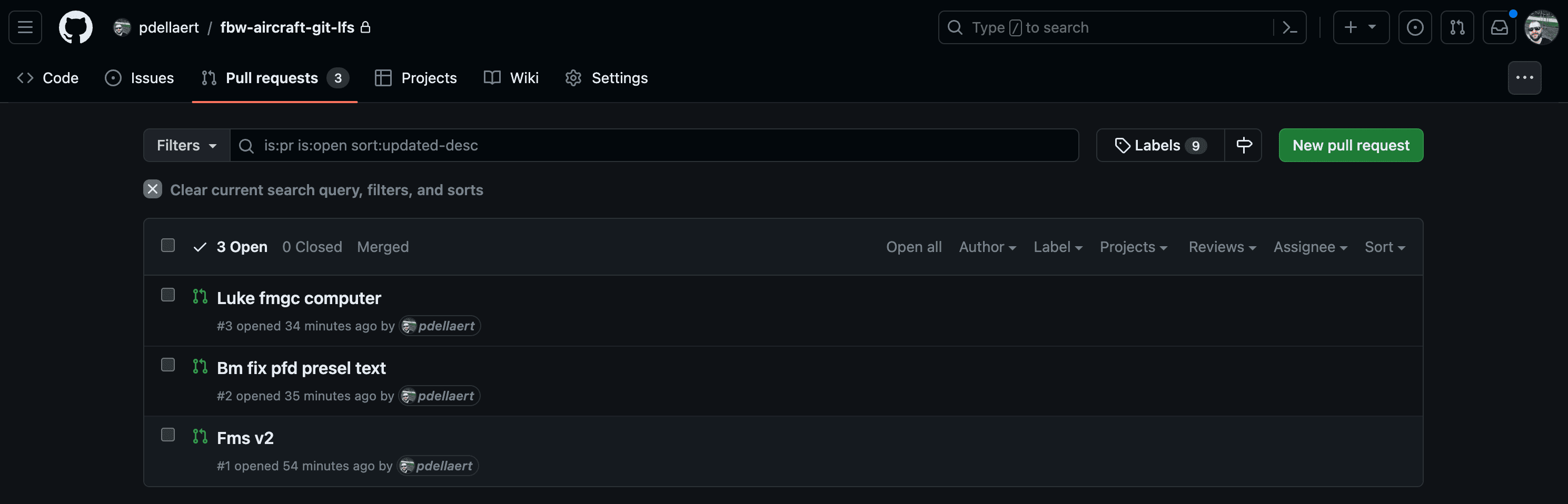

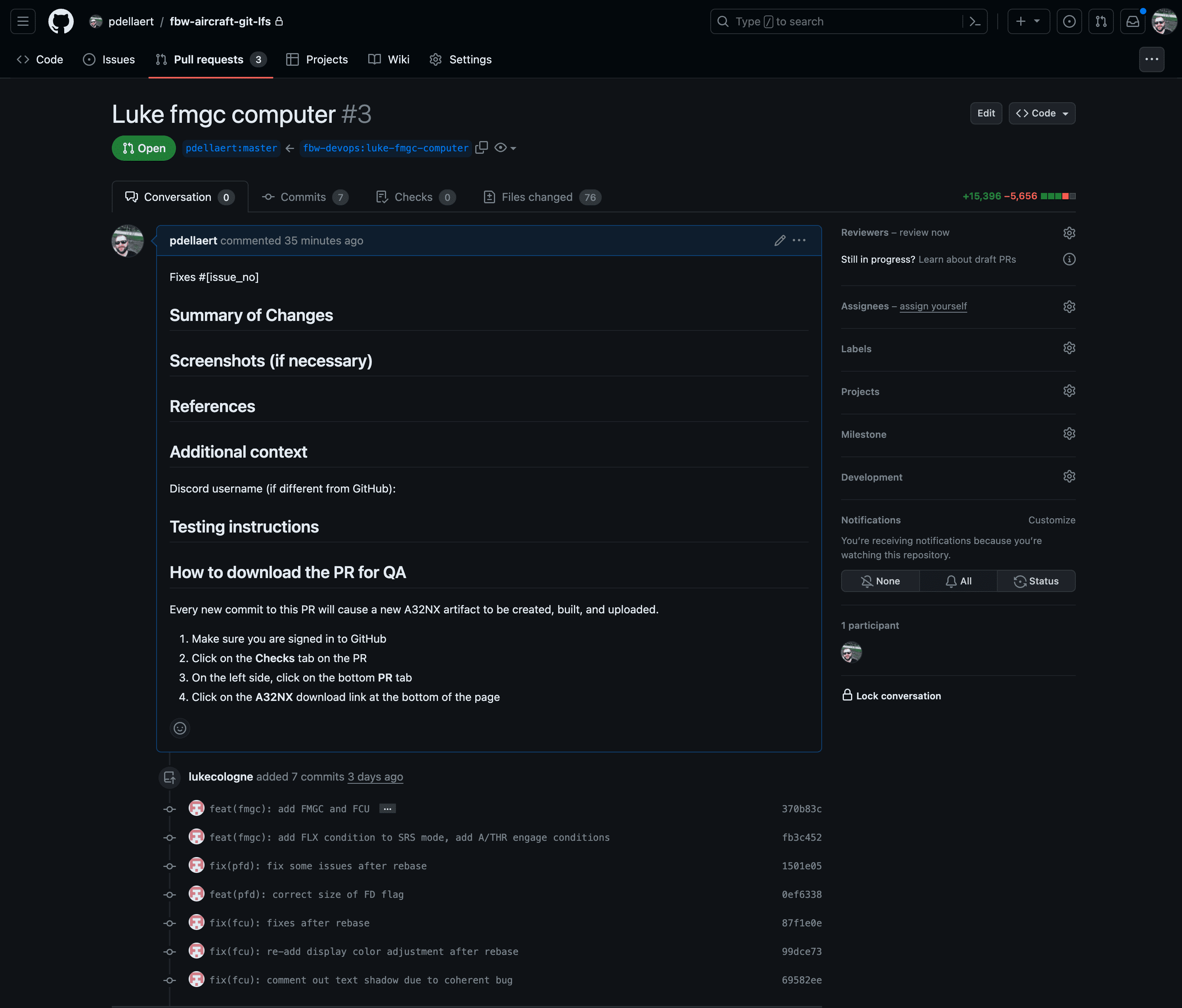

Create the PR on the pdellaert/fbw-aircraft-git-lfs repo for the luke-fmgc-computer branch

Add a remote of a PR to the cloned repo (https://github.com/BravoMike99/a32nx/tree/fix-pfd-presel-text) and push the PR branch to the origin (fork) repo

git remote add bravomike [email protected]:BravoMike99/a32nx.git
git fetch bravomike
git checkout bravomike/fix-pfd-presel-text
git switch -c bm-fix-pfd-presel-text
git push origin bm-fix-pfd-presel-text

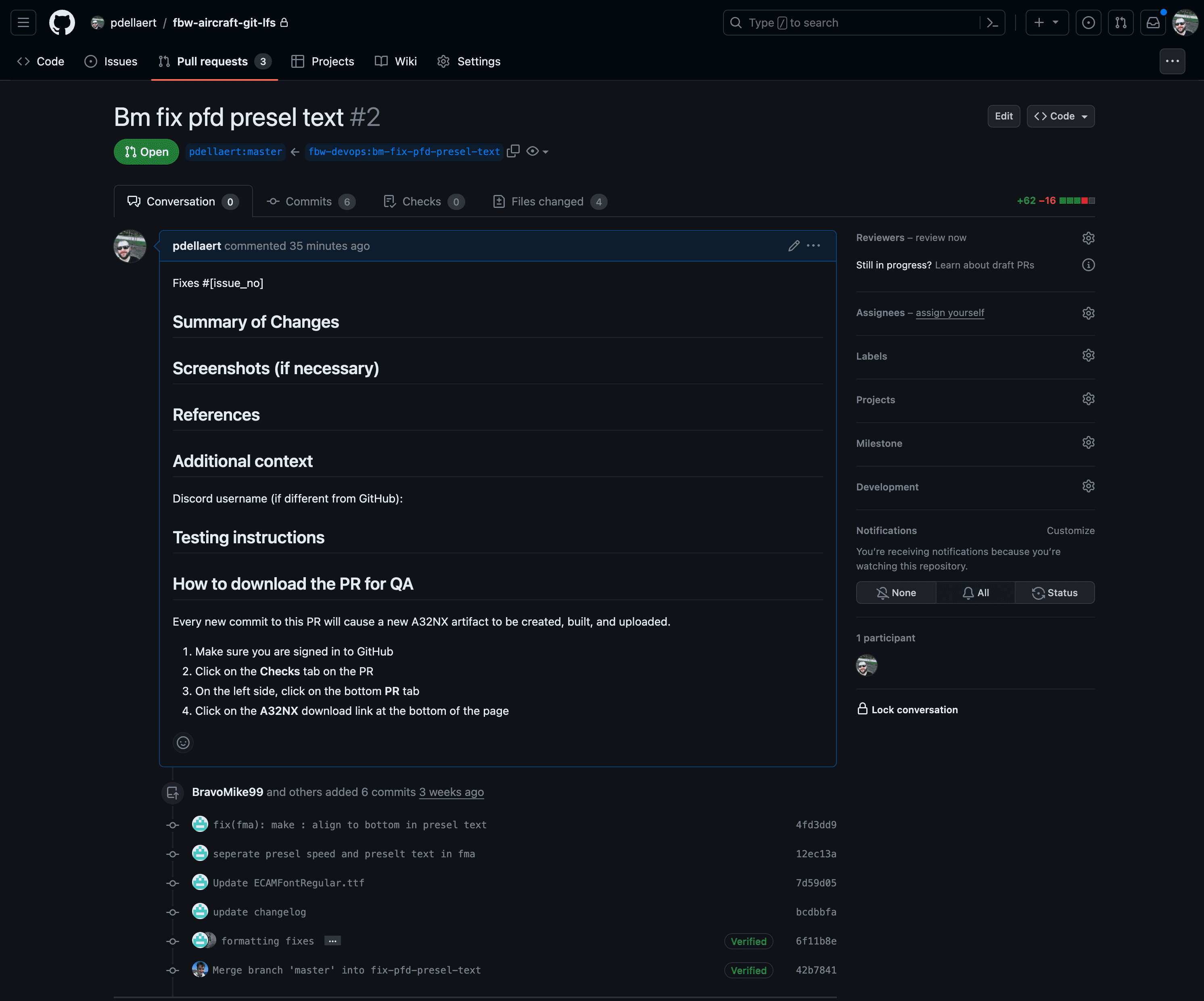

Create a PR on the pdellaert/fbw-aircraft-git-lfs repo for the bm-fix-pfd-presel-text branch

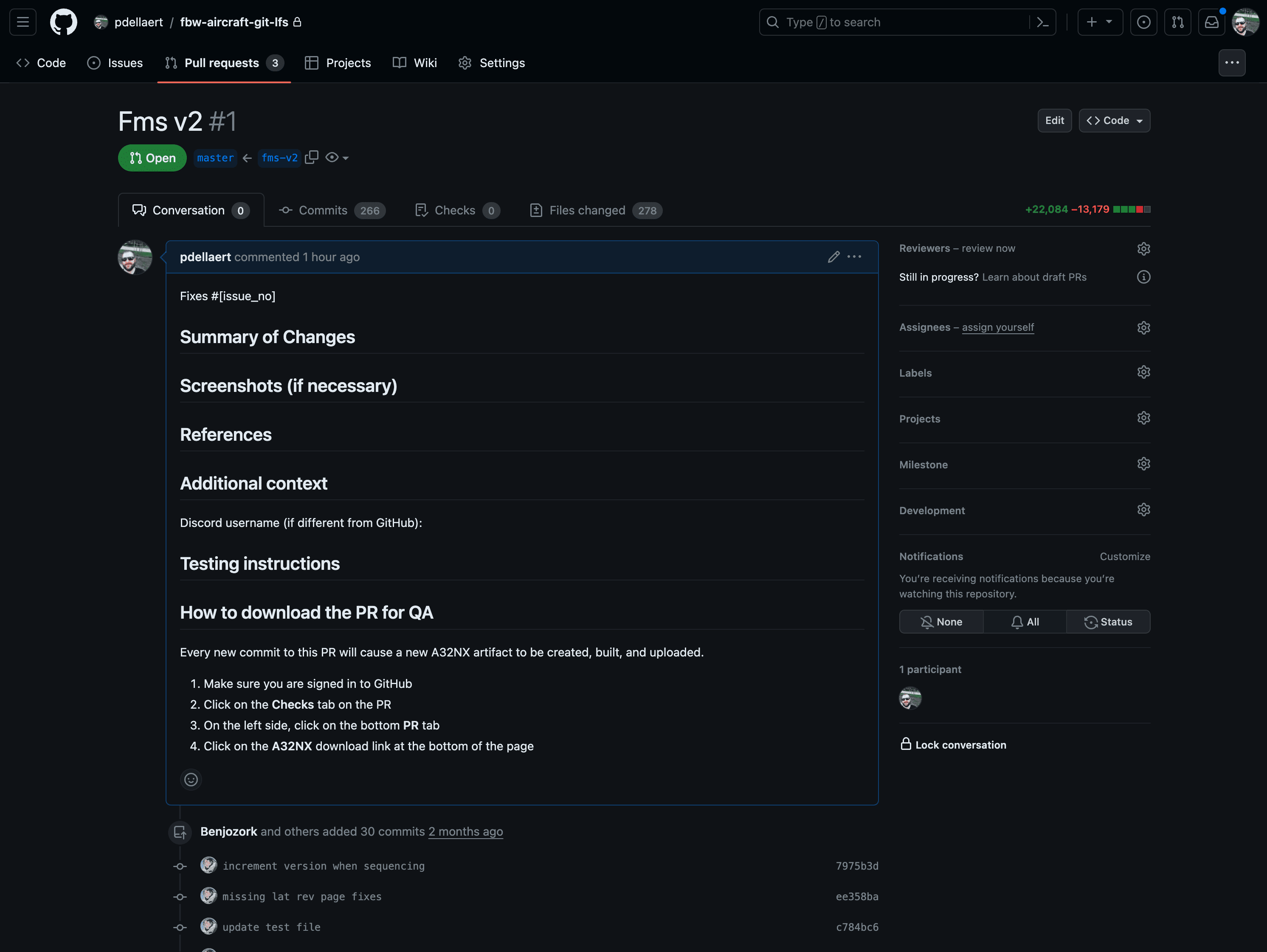

Create a PR for the fms-v2 branch as well (local to pdellaert/fbw-aircraft-git-lfs

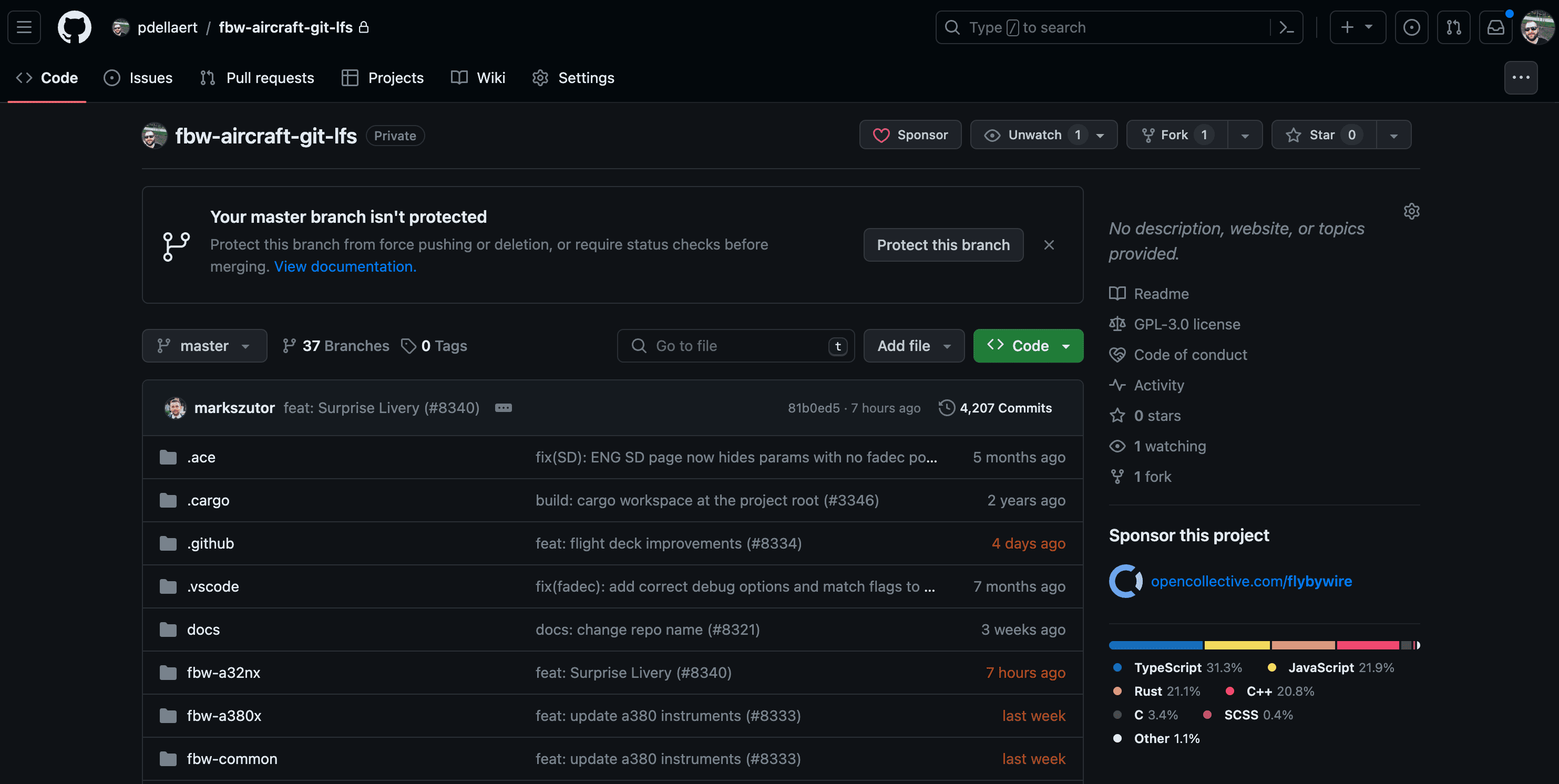

Migrate the pdellaert/fbw-aircraft-git-lfs repo to LFS using the git-migrate-lfs.sh script
```
git-migrate-lfs.sh
```

Clone the fbw-devops/fbw-aircraft-git-lfs fork

git clone [email protected]:fbw-devops/fbw-aircraft-git-lfs.git
git remote add upstream [email protected]:pdellaert/fbw-aircraft-git-lfs.git
git fetch upstream

(OPTIONAL) Enable LFS
```
git config lfs.url https://git-lfs.fbw.straks.dev/aircraft.git
```
Optionally you might need to disable locks (although the Worker should tell LFS it doesn't support it, so then you don't need this)
```
git config lfs.https://git-lfs.fbw.straks.dev/aircraft.git.locksverify false
```
By skipping this step, git is not aware LFS is enabled for the repo, and will just work with the large files (pointers) as if they are regular files.
If LFS is enabled: Fetch all LFS data for the repo
```
git lfs fetch --all
```

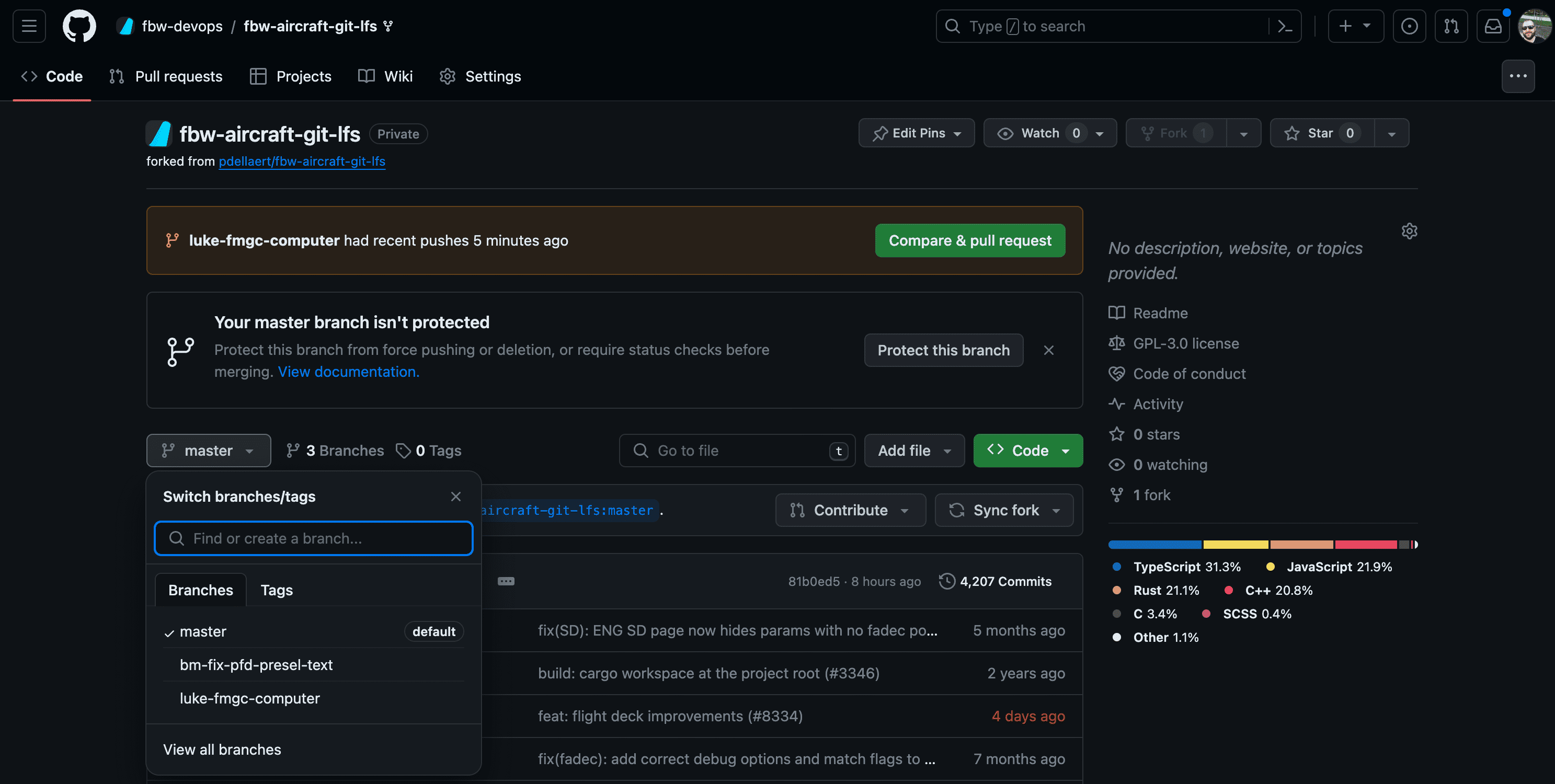

Rebase the main branch of the fork so it is now using git lfs

If LFS is enabled:

git rebase --onto upstream/master
git push --force origin master

If LFS is not enabled:

GIT_LFS_SKIP_SMUDGE=1 git rebase --onto upstream/master
GIT_LFS_SKIP_SMUDGE=1 git push --force --no-verify origin master

Rebase the PR branch to the main upstream branch for luke-fmgc-computer (original deviating commit: de25ee7e325402e2ad8f4eb8e923c6cc0f47886)

If LFS is enabled:

git checkout luke-fmgc-computer
git rebase --onto upstream/master de25ee7e325402e2ad8f4eb8e923c6cc0f478863 luke-fmgc-computer
git push --force origin luke-fmgc-computer

If LFS is not enabled:

GIT_LFS_SKIP_SMUDGE=1 git checkout luke-fmgc-computer
GIT_LFS_SKIP_SMUDGE=1 git rebase --onto upstream/master de25ee7e325402e2ad8f4eb8e923c6cc0f478863 luke-fmgc-computer
git push --force origin luke-fmgc-computer

Note: Had to push with LFS upload because certain files had to be pushed, this seems to have worked

Rebase the PR branch to the main upstream branch for bm-fix-pfd-presel-text (original deviating commit: 7e1f8614c7b91e10e3bbd1730677b9002d3f4672 or de25ee7e325402e2ad8f4eb8e923c6cc0f47886)

If LFS is enabled:

git checkout bm-fix-pfd-presel-text
git rebase --onto upstream/master de25ee7e325402e2ad8f4eb8e923c6cc0f47886 bm-fix-pfd-presel-text
git push --force origin bm-fix-pfd-presel-text

If LFS is not enabled:

GIT_LFS_SKIP_SMUDGE=1 git checkout bm-fix-pfd-presel-text
GIT_LFS_SKIP_SMUDGE=1 git rebase --onto upstream/master de25ee7e325402e2ad8f4eb8e923c6cc0f47886 bm-fix-pfd-presel-text
git push --force origin bm-fix-pfd-presel-text

Note: Either of the commit hashes resulted in a conflict on the CHANGELOG file that had to be manually corrected. (Used de25ee7e325402e2ad8f4eb8e923c6cc0f47886).

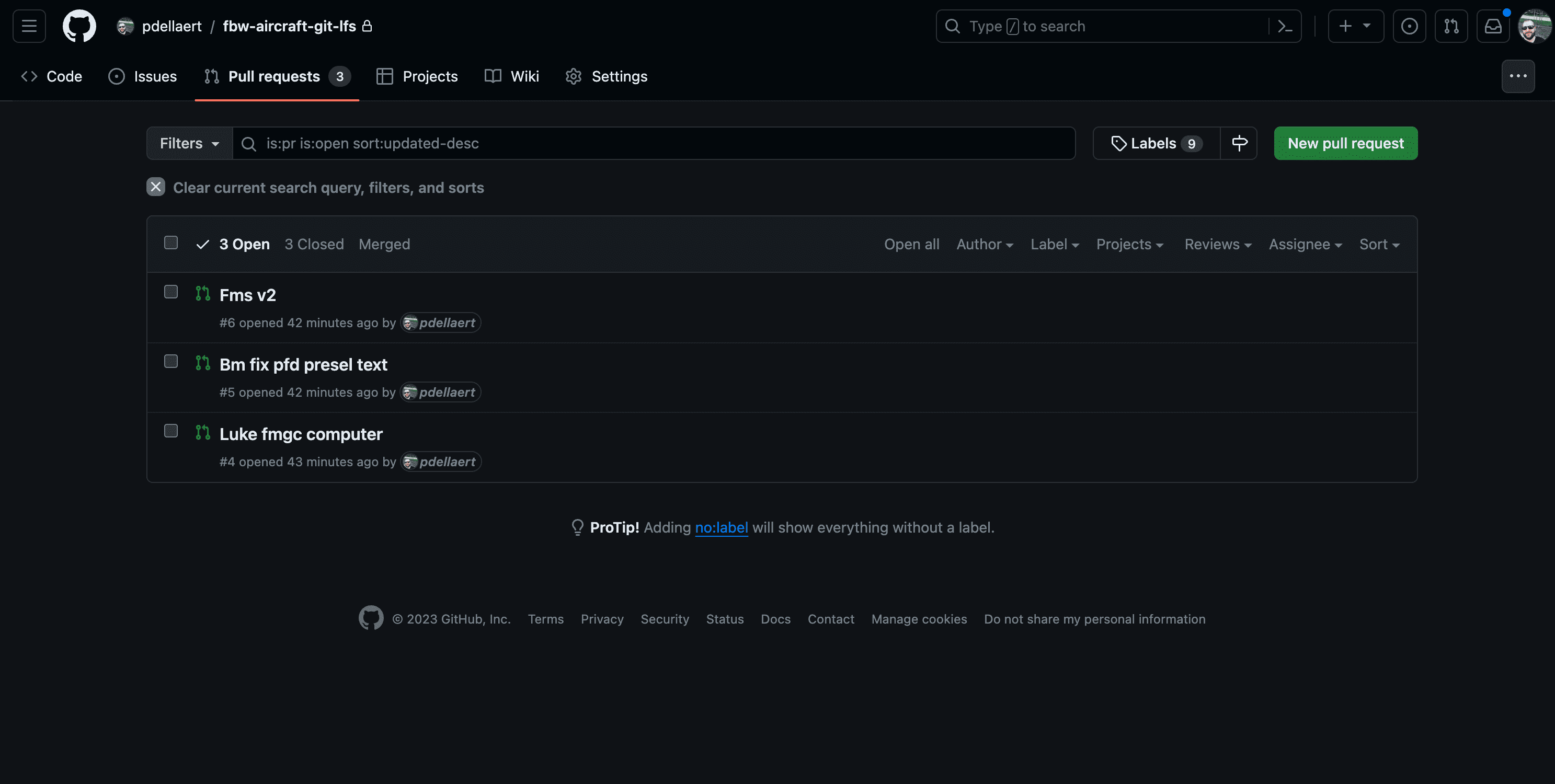

Reopen all PRs:
1. FMS-v2 - Branch was migrated automatically
2. luke-fmgc-computer - branch was manually rebased
3. bm-fix-pfd-presel-text - branch was manually rebased

Testing cloning of repo with LFS:

Cloning without downloading LFS files (in case only source code is relevant)

time GIT_LFS_SKIP_SMUDGE=1 git clone [email protected]:fbw-devops/fbw-aircraft-git-lfs.git NOLFSDOWNLOAD-fbw-aircraft-git-lfs
time git clone [email protected]:fbw-devops/fbw-aircraft-git-lfs.git --config lfs.url=https://git-lfs.fbw.straks.dev/aircraft.git LFSDOWNLOAD-fbw-aircraft-git-lfs
time git clone [email protected]:fbw-devops/fbw-aircraft-git-lfs.git --config lfs.url=https://git-lfs.fbw.straks.dev/aircraft.git --depth 1 LFSDOWNLOAD-ONEDEPTH-fbw-aircraft-git-lfs

Results

2023-12-26 - Mirror, Migrate & Clone only

This time not pushing chunks during Migrate, as the repo is small enough to have every push happen in 1 go.

Storage usage:

9.7G    LFSDOWNLOAD-ONEDEPTH-fbw-aircraft-git-lfs
9.8G    LFSDOWNLOAD-fbw-aircraft-git-lfs
161M    NOLFSDOWNLOAD-fbw-aircraft-git-lfs
--
14G     OLDREPO-aircraft
7.2G    OLDREPO-ONEDEPTH-aircraft

2023-12-26 - Full test with LFS

Same as 2023-12-25, not showing screenshots of github anymore, but this contains an asciinema recording of the whole process.

2023-12-25

This test was executed on December 25th, 2023. Relevant commit hashes:

flybywiresim/aircraft:master - fee32c995aa33daac713697c74530f070ca7bfda
flybywiresim/aircraft:fms-v2 - d79ea0d85b73d75bc4e906af05b135ec966b75cb
lukecologne/a32nx:fmgc-computer - 69582eed6a8e404504681de3a30fd3510c8d3827
BravoMike99/a32nx:fix-pfd-presel-text - 42b7841b84d2f36037f87d2c3f4e90187a22bb1b

This test followed the process where LFS is not enforced on the fork after migration. This resulsts in executing steps 1-16, except for tests 11 and 13.

Remarkable notes:

All PRs get closed because the entire history of the repository is rewritten (new commit hashes for all commits)

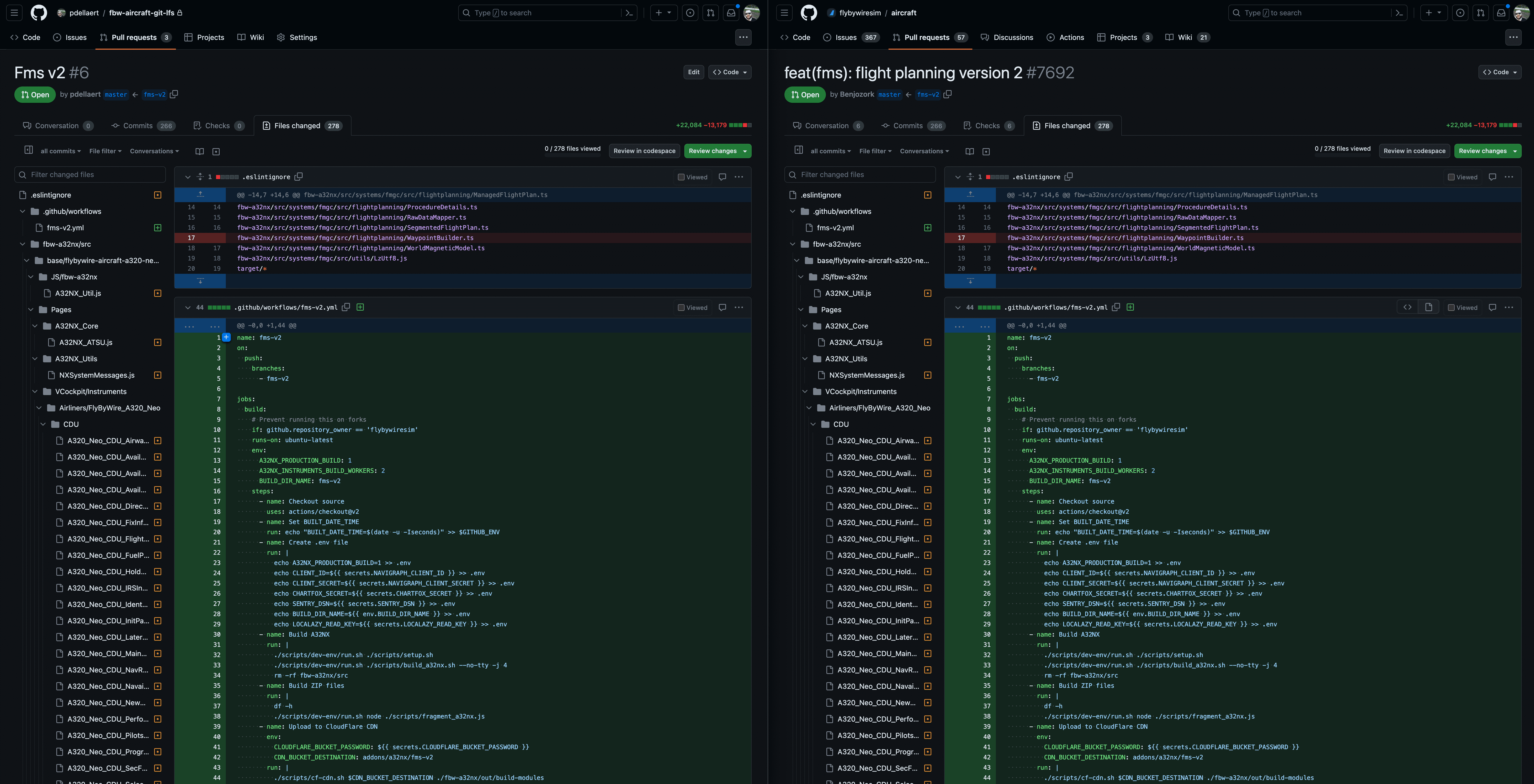

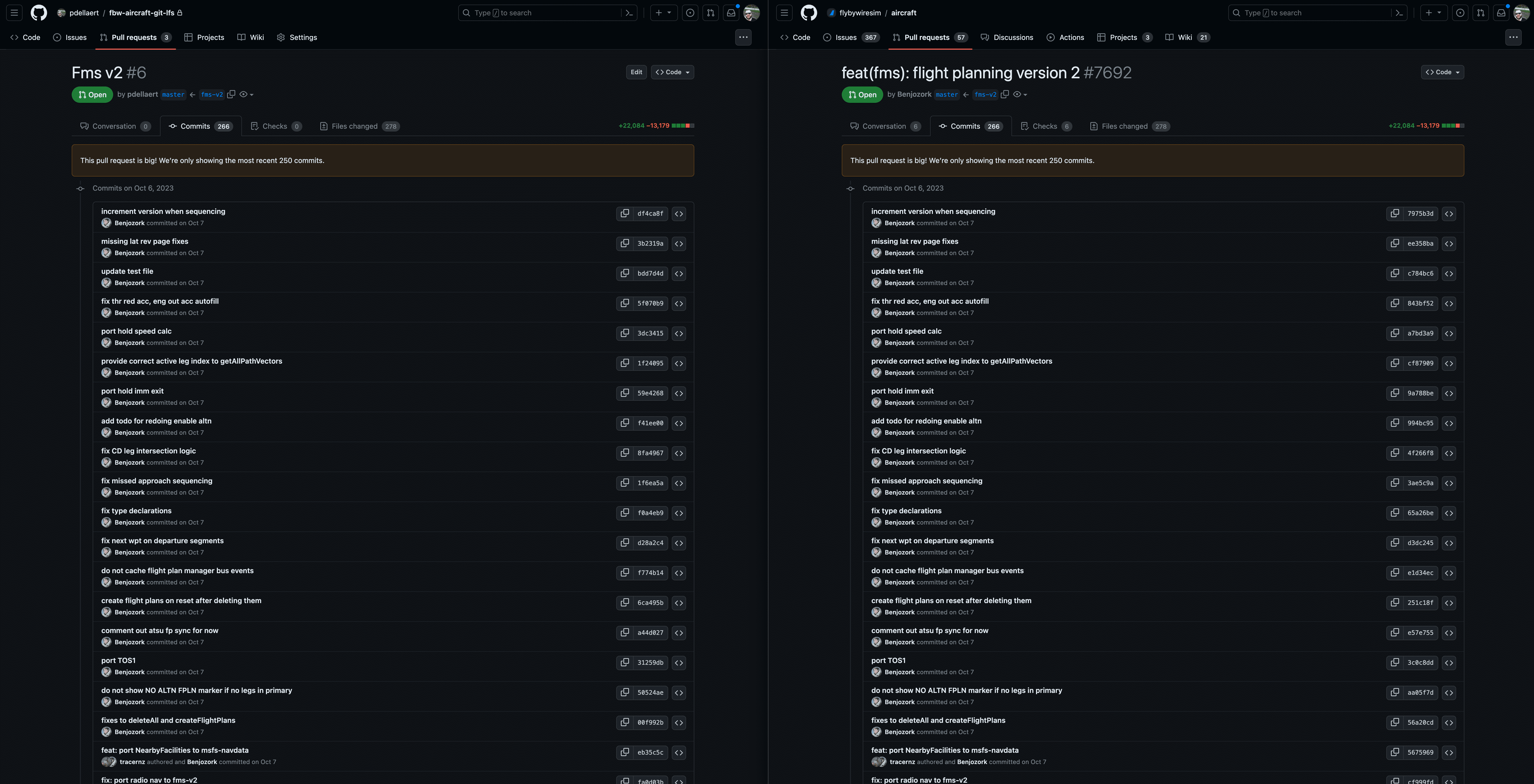

The FMS-v2 branch is local to the repo and gets migrated, so recreating the PR is easy

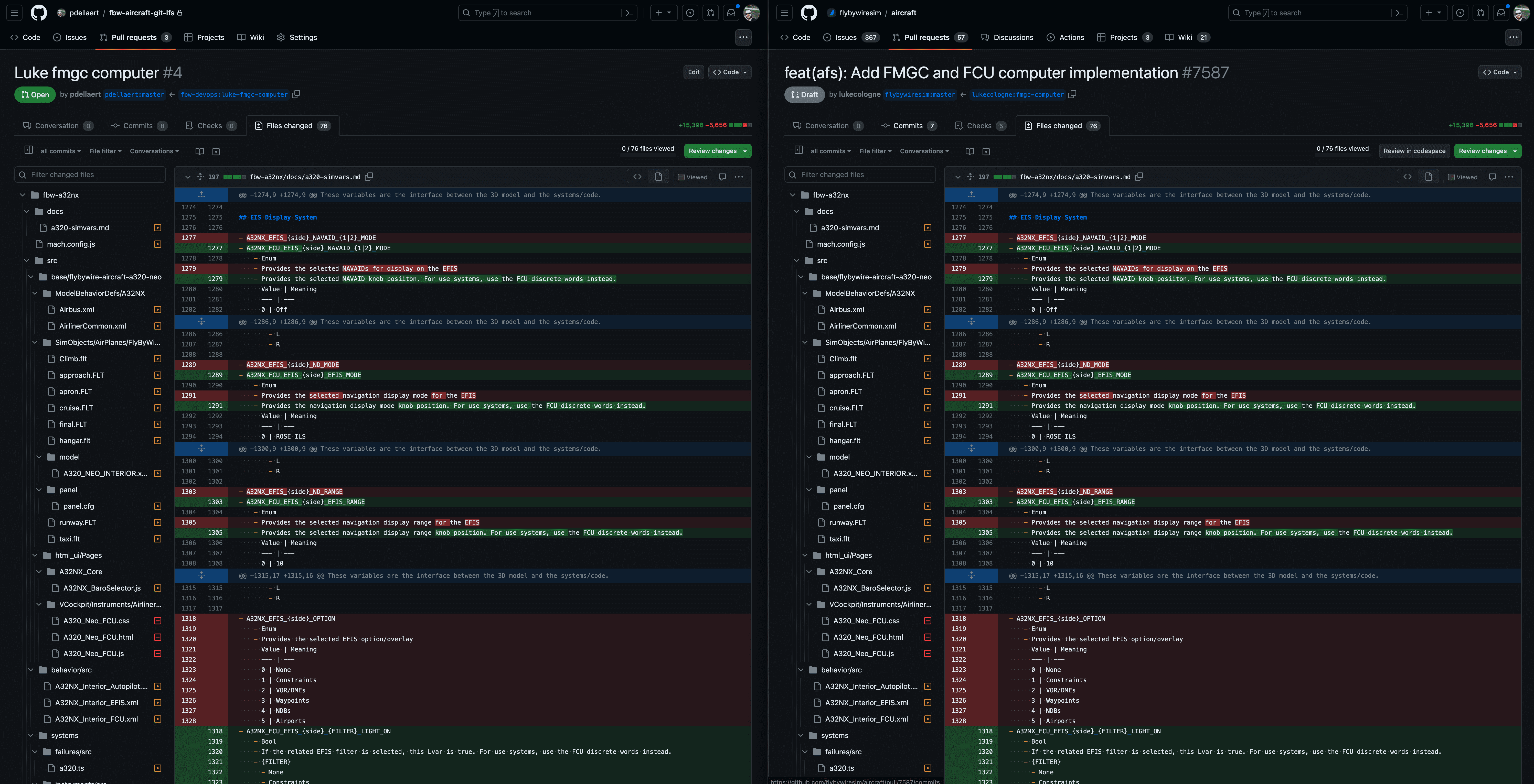

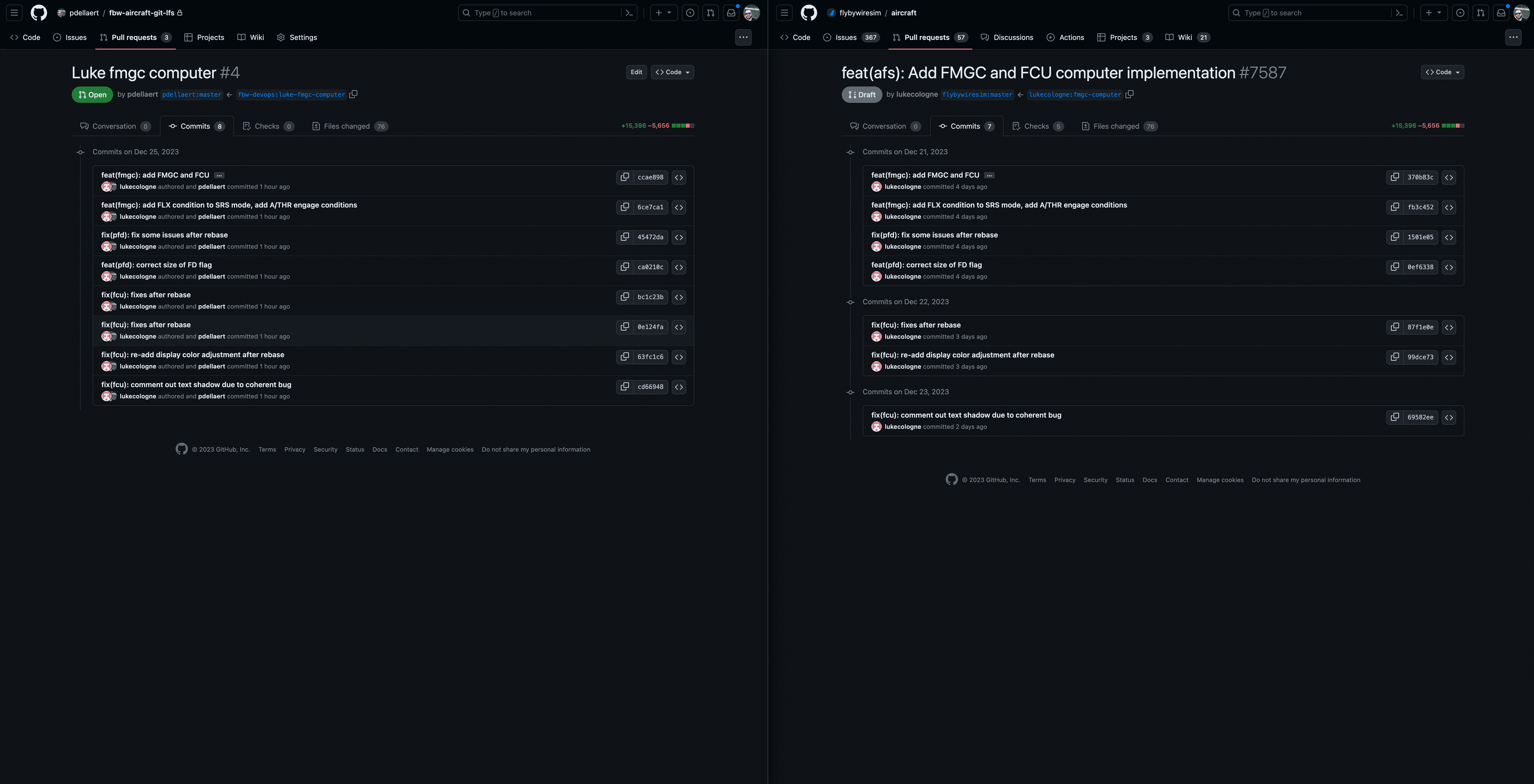

The PR for Luke's FMGC Computer (uses rebase) gets migrated easily, but it seemed like there were files being deleted. There's one more commit for files being deleted which was not in the original PR. Might need investigation.

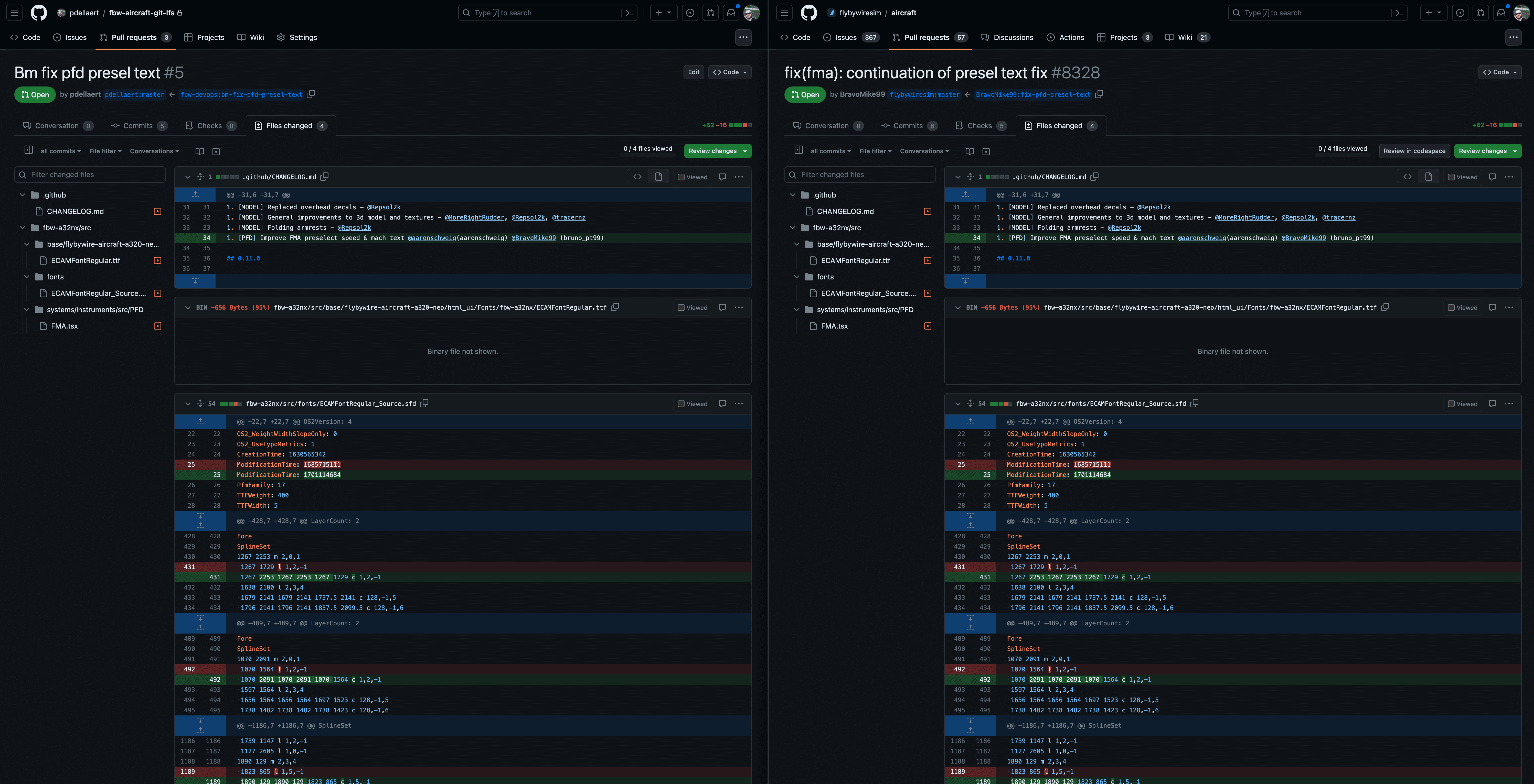

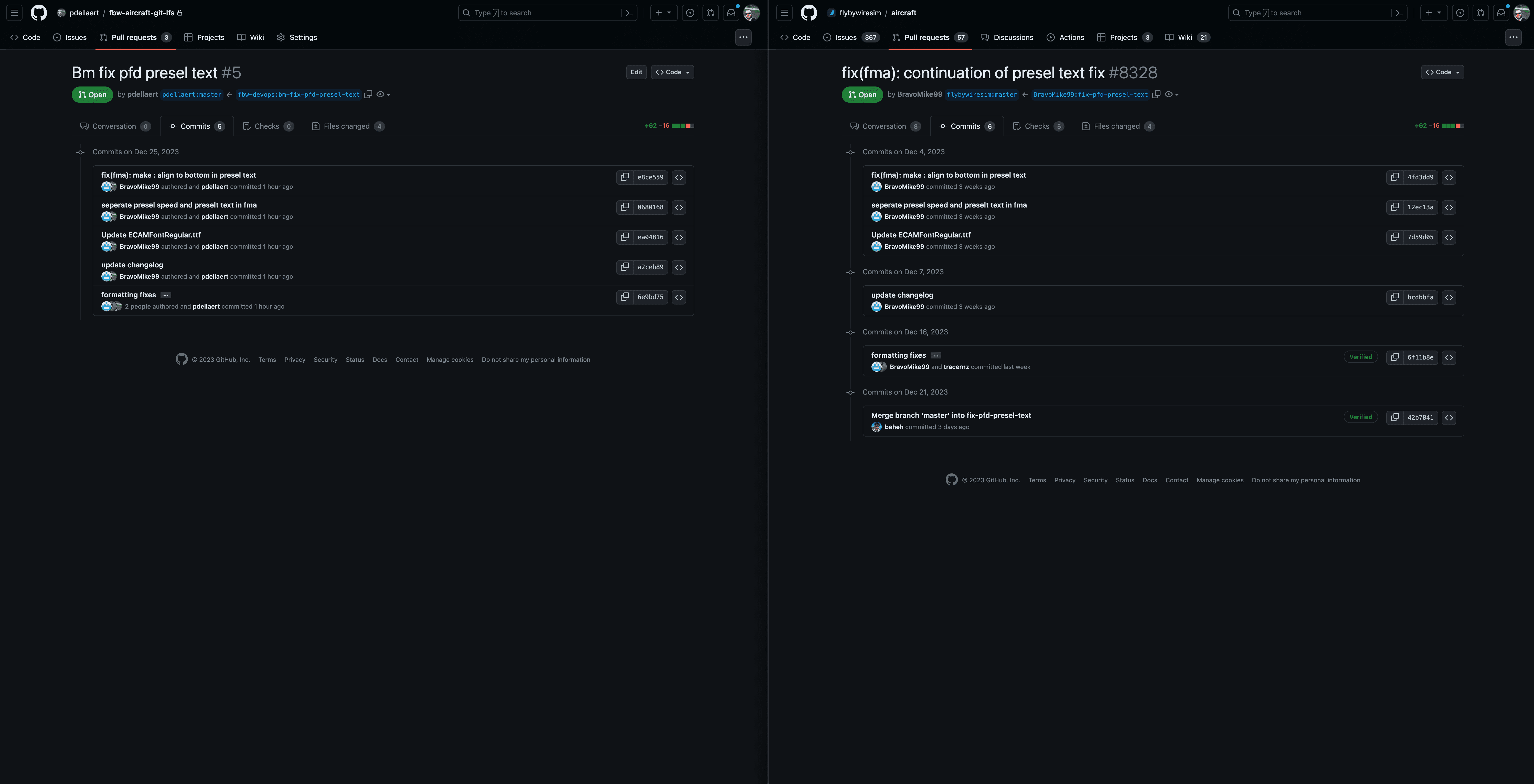

The PR for BM's fix pfd presel text (uses merge) misses the merge commit at the end, this is because during the rebase --onto, the entire history is rebased anyway, so the merge commit has nothing to do.
